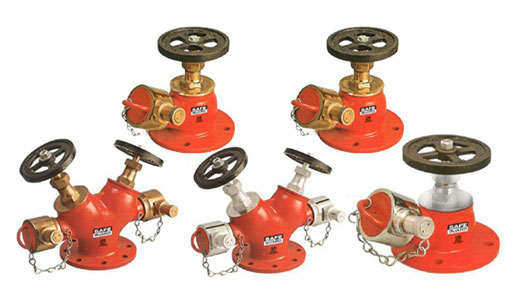

Single/Double Landing Valves
Description
Landing valves (also called hydrant valves) allow connection of fire hoses to the water supply system. Single or double outlets provide flexibility in firefighting operations.
Technical Specifications:
- Material: Gunmetal / Stainless Steel / Brass
- Size: 65 mm / 75 mm / 100 mm inlet
- Outlet: Single or double 65 mm / 50 mm / 38 mm outlets
- Standard: IS 5290
- Pressure Rating: 10–16 bar
- Features: Swing handle for easy operation, corrosion-resistant coating
- Applications: Indoor hydrants, staircases, fire pump outlets

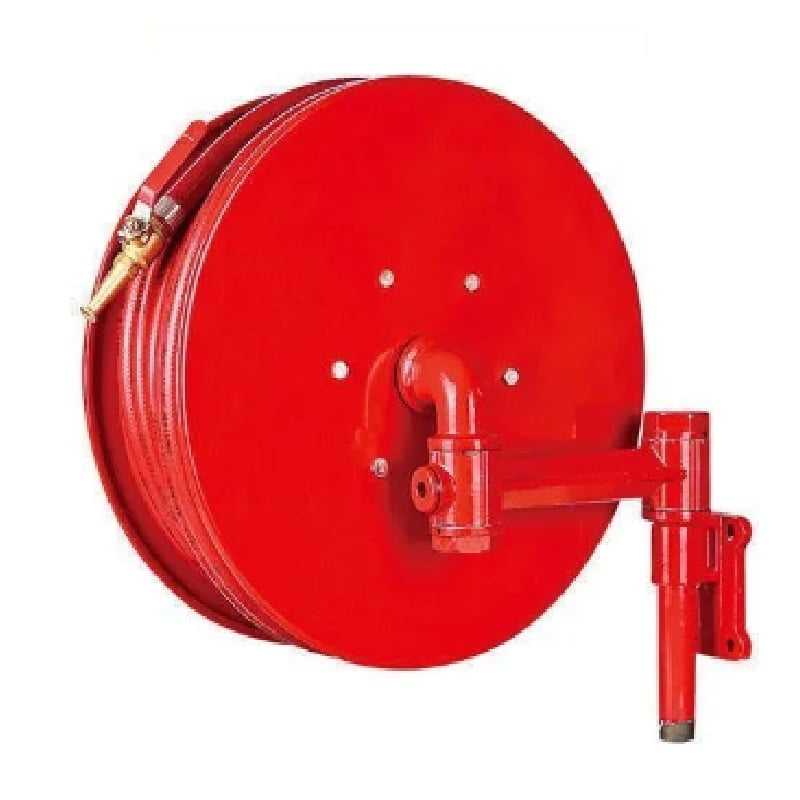

Fire Hose Reel
Description
Hose reels provide quick access to hoses for firefighting. Swing-type wall-mounted reels allow rotation for easy hose deployment.
Technical Specifications:
- Hose Length: 30 m standard (can be customized)
- Hose Diameter: 19 mm / 25 mm
- Material: MS / FRP reel, powder-coated for corrosion resistance
- Operating Pressure: 10–16 bar
- Installation: Wall-mounted with swing arm support
- Standard: IS 636 / UL listed
- Accessories: Spray nozzle, swivel connection

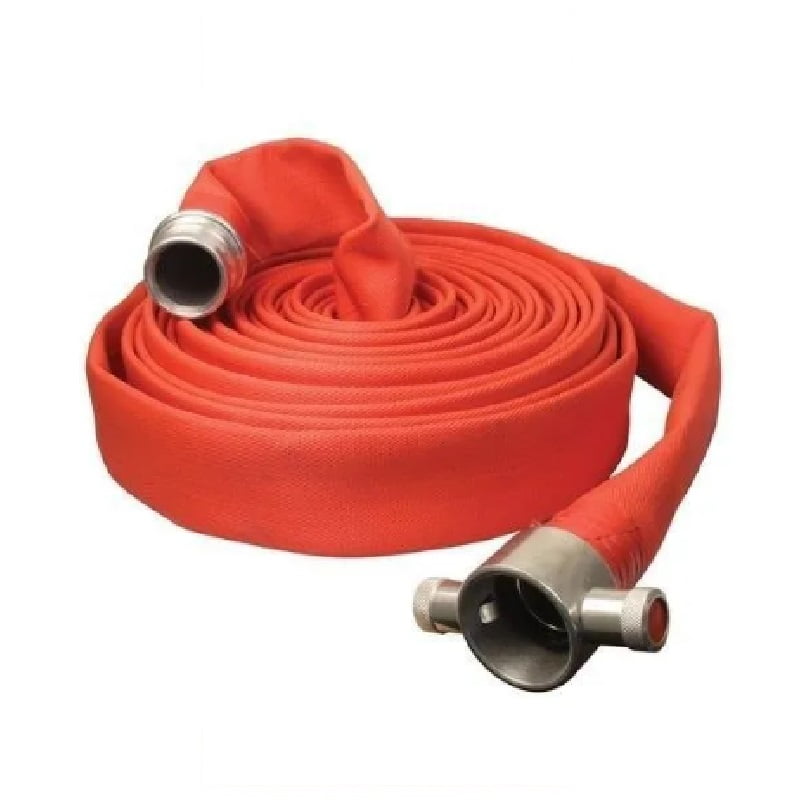

Fire Hoses
Description
High-quality hoses designed to handle high water pressure for fire suppression.
Types:
- RRL Hose: Rubber Reinforced Lining, flexible, durable for indoor/outdoor use
- CP Hose: Cotton-PVC or Cotton-Polyester, lightweight, good abrasion resistance
Technical Specifications:
- Size: 38 mm / 50 mm / 65 mm
- Length: 15 m / 30 m standard
- Working Pressure: 10–16 bar
- Test Pressure: 25–30 bar
- Couplings: Aluminum / SS / Gunmetal
- Standard: IS 636 / UL/FM

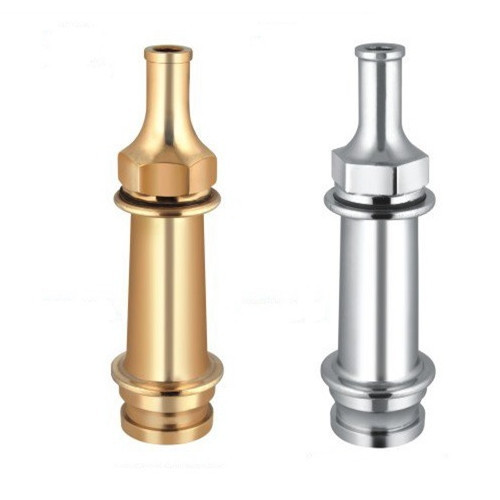

Branch Pipes & Nozzles
Description
Branch pipes connect hoses to the water supply and control water flow. Nozzles adjust spray patterns for effective firefighting.
Types:
- Short Branch Pipe: Compact, easy to handle for indoor hydrants
- Fog Nozzle: Produces fine water mist to control Class A fires
- Jet Nozzle: Produces strong, concentrated water jet for longer reach
Technical Specifications:
- Material: Gunmetal / Brass / SS
- Connection: 38 mm / 50 mm / 65 mm BSP threads
- Operating Pressure: 10–16 bar
- Spray Pattern: Fog / Jet / Adjustable
- Standard: IS 5290 / UL/FM approved
Hose Boxes
Description
Hose boxes store fire hoses, branch pipes, and nozzles in an organized manner. Double doors allow quick access in emergencies.
Technical Specifications:
- Material: Mild Steel (MS) / Fiberglass Reinforced Plastic (FRP)
- Doors: Double door with locking system
- Finish: Red powder-coated for corrosion resistance
- Size: Standard sizes 700 x 700 mm or custom
- Installation: Wall-mounted / Recessed
- Standard: IS 5290

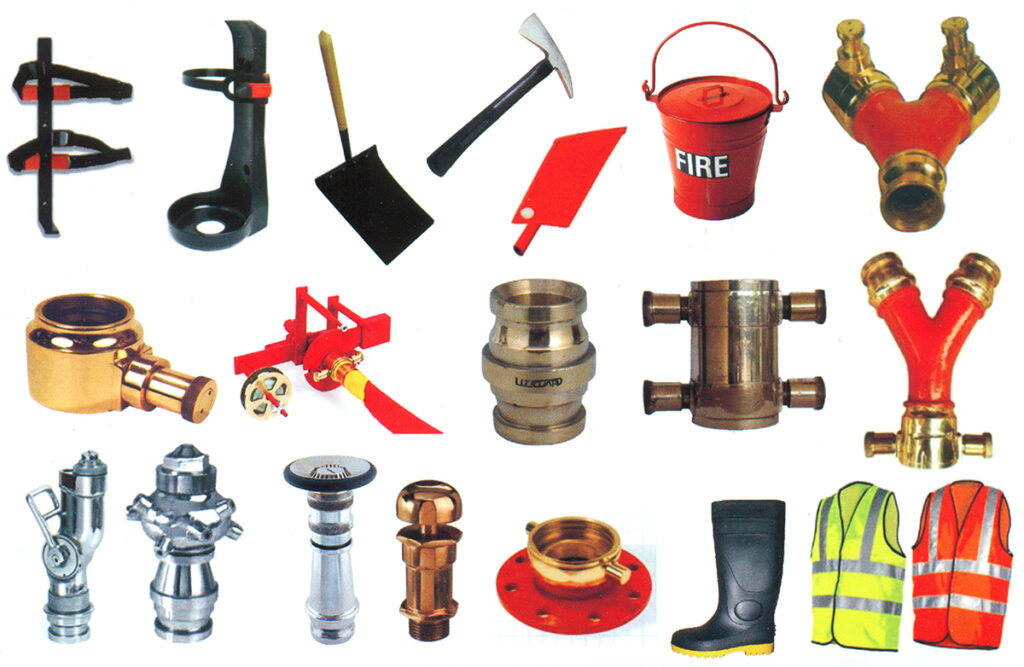

Hydrant Accessories
Description
Accessories ensure proper installation, operation, and maintenance of hydrant systems.
Components:
- Adapters: Connect hoses of different sizes to outlets
- Couplings: Quick-connect couplings for hoses and nozzles
- Caps & Chains: Protect outlets from dust and unauthorized use
Technical Specifications:
- Material: Gunmetal / Aluminum / SS
- Standard: IS 5290
- Finish: Powder-coated / Nickel-plated / Chrome-plated
- Features: Durable, corrosion-resistant, compatible with standard hydrants
Overview
We provide a wide selection of fire safety equipment to safeguard industrial facilities, commercial spaces, and critical infrastructure. Our products meet national and international fire safety standards.
Features & Benefits
- Robust and weather-resistant
- Reliable in emergency situations
- Easy installation and maintenance
