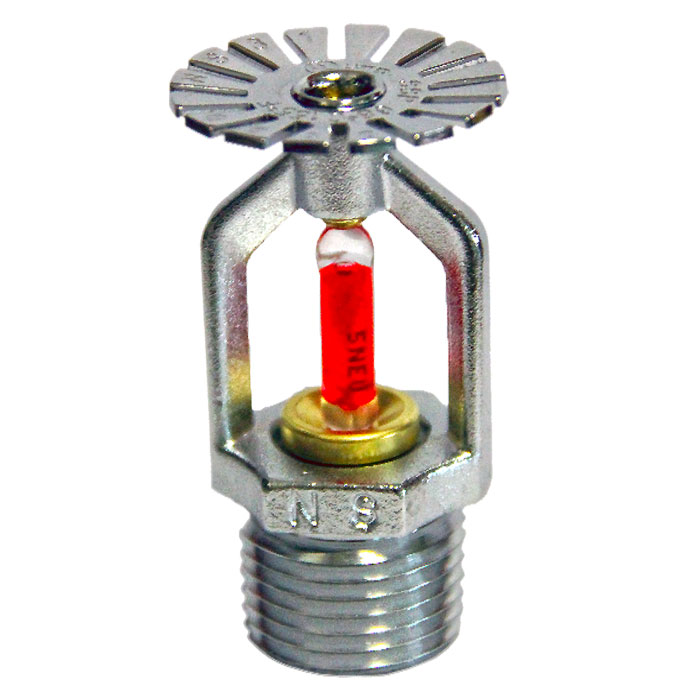

Pendant Sprinkler
Description
Most common type, installed on ceilings with water spraying downward in a circular pattern. Suitable for offices, malls, warehouses, and factories.
Technical Specs:
- K-Factor: 5.6 / 8.0 / 11.2
- Temp Ratings: 57°C / 68°C / 79°C / 93°C / 141°C
- Finish: Brass, Chrome, White Painted
- Standards: UL / FM / ISI

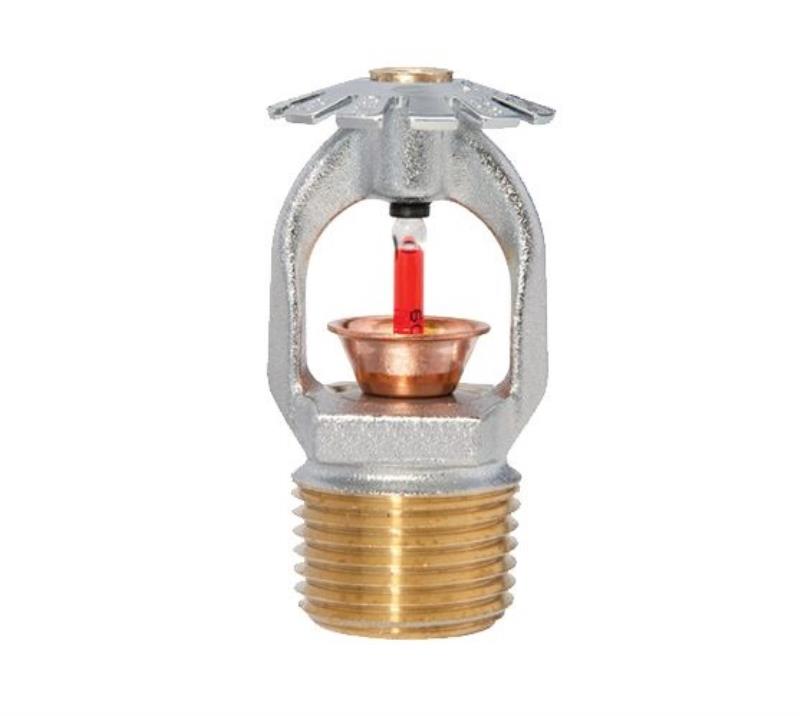

Upright Sprinkler
Description
Installed in an upright position, discharging water upwards against a deflector, which then spreads water downward. Used where ceiling obstructions exist (industrial plants, warehouses).
Technical Specs:
- K-Factor: 5.6 / 8.0 / 11.2
- Temp Ratings: 68°C / 79°C / 93°C
- Coverage: Circular spray pattern
- Finish: Brass, Chrome plated
- Standards: UL / FM / ISI

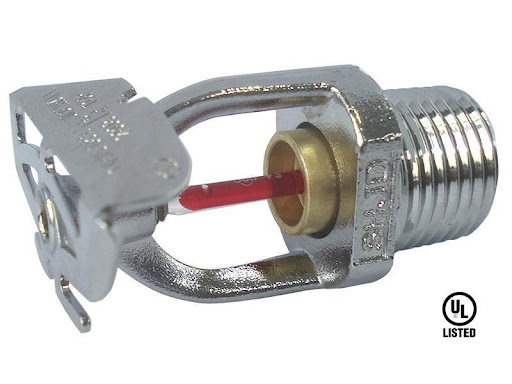

Sidewall Sprinkler
Description
Mounted on walls (horizontally or vertically), discharging water in a half-circle pattern. Ideal for corridors, hotel rooms, small offices, and decorative areas.
Technical Specs:
- Spray Pattern: 180° (half-circle)
- K-Factor: 5.6 / 8.0
- Temp Ratings: 68°C / 79°C
- Finish: Brass, Chrome, White painted
- Standards: UL / FM / ISI

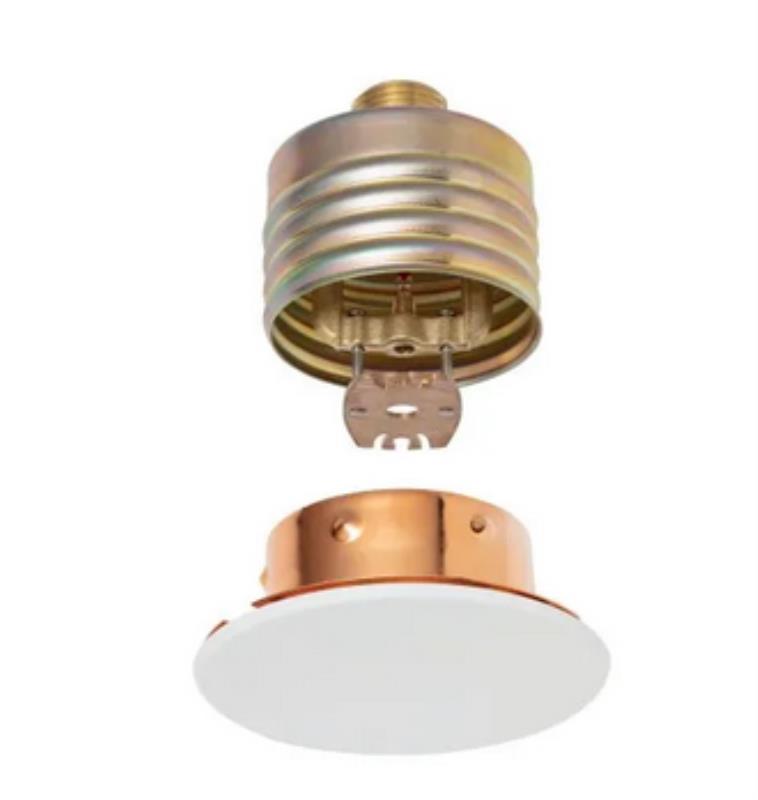

Concealed Sprinkler
Description
Designed for aesthetic interiors. Hidden by a decorative cover plate that falls off during fire (heat melts solder link), activating the sprinkler.
Technical Specs:
- Mounting: Ceiling with cover plate
- K-Factor: 5.6 / 8.0
- Temp Ratings: 57°C / 68°C / 79°C
- Finish: White / Chrome plated with matching cover plate
- Standards: UL / FM / ISI

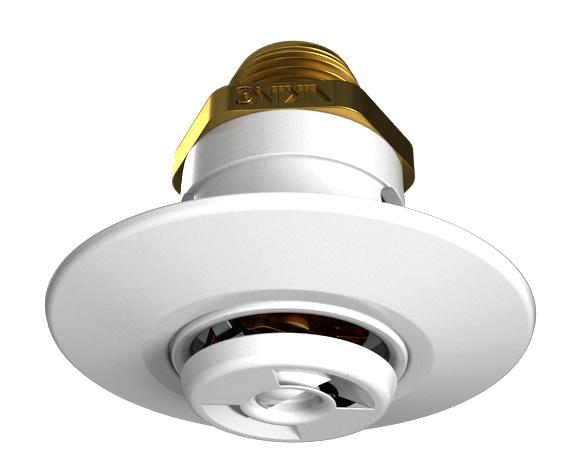

Flush Sprinkler
Description
Installed flush with ceiling, providing a cleaner look while still being visible. Common in hotels, shopping complexes, and showrooms.
Technical Specs:
- K-Factor: 5.6 / 8.0
- Temp Ratings: 68°C / 79°C
- Coverage: Circular spray pattern
- Finish: White Painted / Chrome plated
- Standards: UL / FM / ISI
Overview
We provide a wide selection of fire safety equipment to safeguard industrial facilities, commercial spaces, and critical infrastructure. Our products meet national and international fire safety standards.
Features & Benefits
- Robust and weather-resistant
- Reliable in emergency situations
- Easy installation and maintenance
